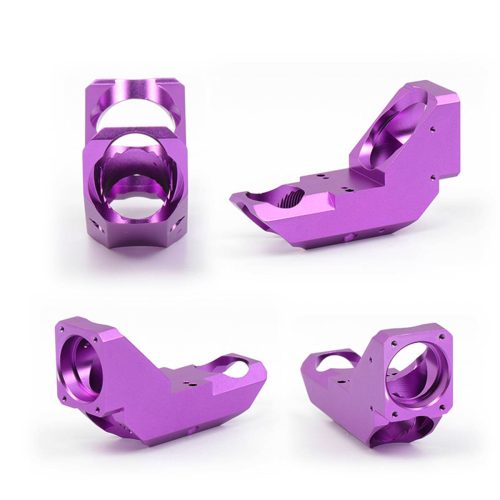

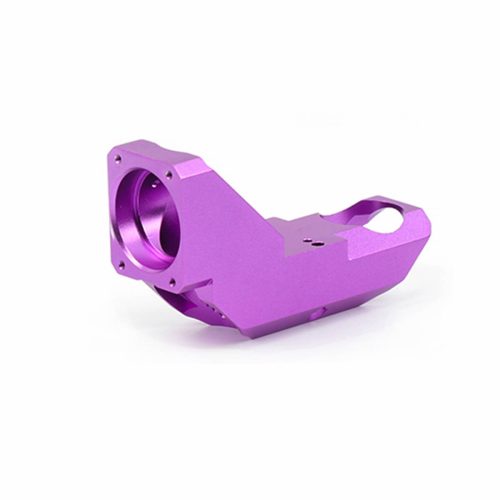

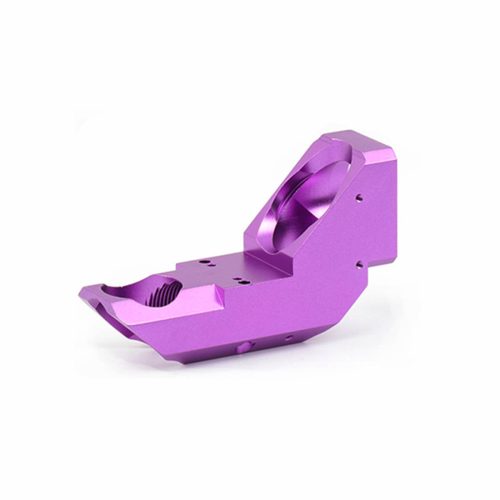

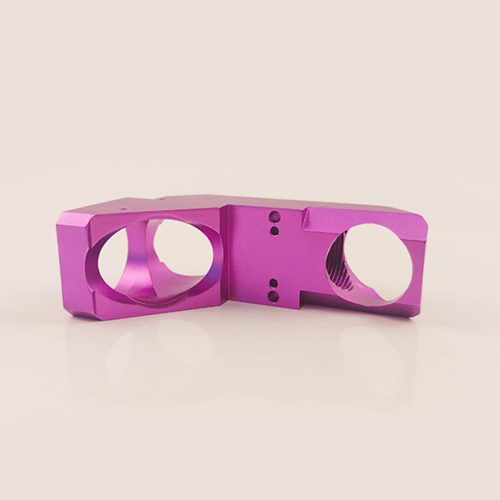

Producing a 5-axis CNC machining part involves a multi-step process that leverages advanced manufacturing technology. It begins with the creation of a precise Computer-Aided Design (CAD) model detailing the part’s geometry. Subsequently, Computer-Aided Manufacturing (CAM) software is employed to develop a CNC program, specifying toolpaths and cutting strategies for the 5-axis CNC machine. Material selection is crucial, with considerations for the part’s requirements influencing the choice.

The CNC machine, equipped with five axes of motion, then executes the programmed instructions, allowing for intricate and complex cuts from various angles. Rigorous quality control measures are implemented throughout the process to ensure the final part meets the specified tolerances and design requirements. This method enables the production of highly sophisticated components with intricate geometries and precise detailing.
